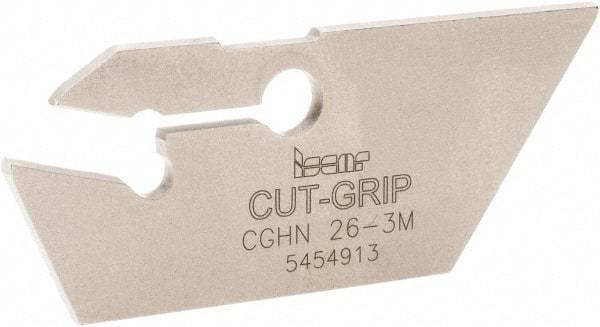

Iscar - 2.8 to 4mm Groove Width, 20mm Max Depth of Cut, Neutral Cut, CGHN Indexable Grooving Blade - Multiple Insert Styles, Series Cut Grip
Item #: 60782042
Brand: Iscar
Model #: 2800590
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 2.80 |
| Minimum Groove Width (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Blade Style | CGHN |
| Series | Cut Grip |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 2.40 |
| Blade Width (Decimal Inch) | 0.0945 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 63.00 |
| Overall Length (Decimal Inch) | 2.4803 |
| Complete Insert Compatibility | GIM 3UT-1.5RA; GIPA 3.00-1.50; GIPA 3.00-0.20; GIPA 3.00-0.20-D; GIPA 3.00-1.50-D; GIPA 3.00-1.50YZ-D; GIPA 4.00-2.00; GIPA 4.00-0.40; GIPA 4.00-2.00-D; TIP 4A-MT-0.15; TIP 4MT-0.20; TIP 4MT-0.15; TIP 4WT-0.15 |
