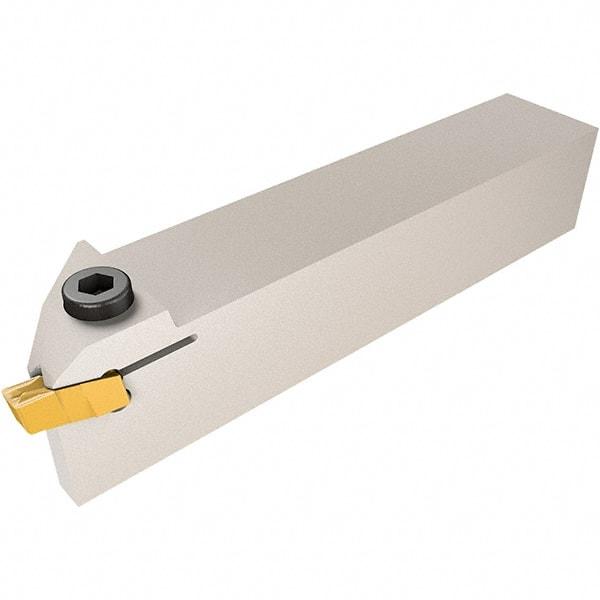

Iscar - GHM, External, Right Hand, 4.8mm Max Depth of Cut, 5mm Max Groove Width, Indexable Grooving Tool Holder - GI.. Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 78mm OAL
Item #: 60787843
Brand: Iscar
Model #: 2800444
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (mm) | 4.80 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 78.00 |
| Overall Length (Decimal Inch) | 3.0709 |
| Toolholder Style | GHM |
| Insert Compatibility | GI.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 15.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5906 |
| Complete Insert Compatibility | GIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.80; GIF 4.00E-0.60; GIF 4.00E-0.40; GIF 4.23-0.10; GIF 5.00E-0.60; GIF 5.00E-0.40; GIG 1.04-0.00; GIG 1.20-0.00; GIG 1.25-0.10; GIG 1.40-0.00; GIG 1.45-0.10; GIM 2.4; GIM 3; GIM 3.2; |
