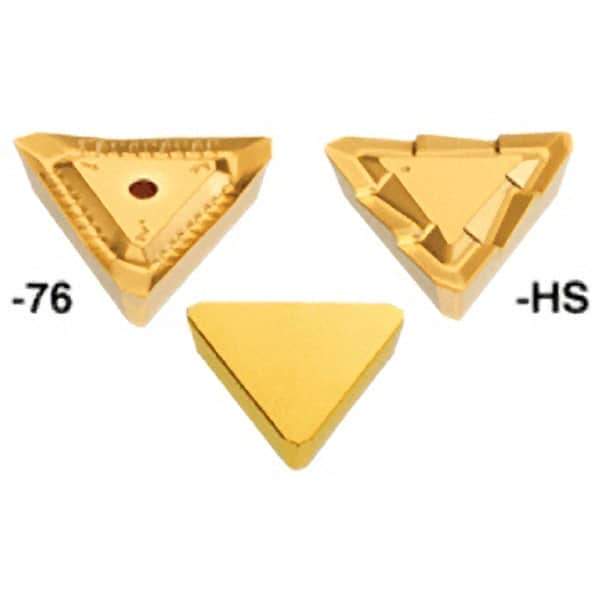

Iscar - TPKN32 Grade IC20 Carbide Milling Insert - Uncoated, 0.1252" Thick, 0.3752" Inscribed Circle
Item #: 60837820
Brand: Iscar
Model #: 5600386
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPKN |
| Insert Size | 32 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (Decimal Inch) | 0.1252 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Right Hand |
| Manufacturers Catalog Number | TPK 32PPFR |
