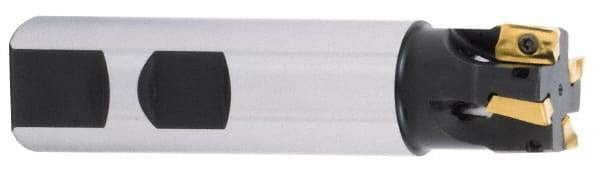

Iscar - 0.56" Cut Diam, 0.394" Max Depth of Cut, 5/8" Shank Diam, 3-1/4" OAL, Indexable Square Shoulder End Mill - APCR/APCT/APKR/APKT/APKW/HM90APCT/HM90APKT/HM90APKW 1003 Inserts, Weldon Shank, 90° Lead Angle, Series Heli2000
Item #: 60840923
Brand: Iscar
Model #: 3101945
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5600 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Decimal Inch) | 3.2500 |
| Lead Angle | 90 |
| Series | Heli2000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HM90 E90A-10 |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 0.9000 |
| Weldon Flat | Yes |
| Insert Compatibility | APCR/APCT/APKR/APKT/APKW/HM90APCT/HM90APKT/HM90APKW 1003 |
