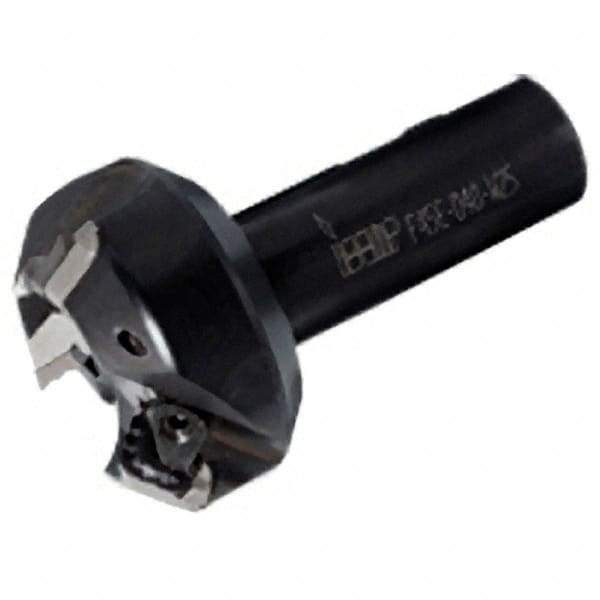

Iscar - 45° Lead Angle, 2.7" Max Cut Diam, 1" Min Cut Diam, 0.236" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, SEKN/R 12 Insert Style, 3-1/2" Overall Length, Straight Shank
Item #: 60842366
Brand: Iscar
Model #: 3100022
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.7000 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Overall Length (Decimal Inch) | 3.5000 |
| Insert Style | SEKN/R 12 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number of Cutter Inserts | 2 |
| Toolholder Style | F45E |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.2500 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 2.2500 |
