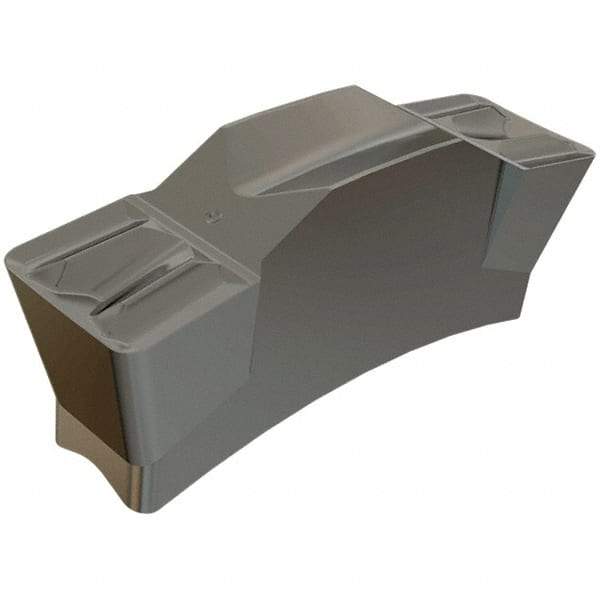

Iscar - 506TGMP Grade IC20N, 5mm Cutting Width Cermet Grooving Insert - 15mm Max Depth of Cut, Neutral, 0.6mm Corner Radius, Uncoated
Item #: 60877222
Brand: Iscar
Model #: 6450008
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TGMP |
| Insert Size | 506 |
| Material | Cermet |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Manufacturer's Grade | IC20N |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Overall Length (mm) | 17.60 |
| Overall Length (Decimal Inch) | 0.6929 |
| Series | Top Grip |
| Overall Width (mm) | 5.00 |
| Overall Width (Decimal Inch) | 0.1969 |
