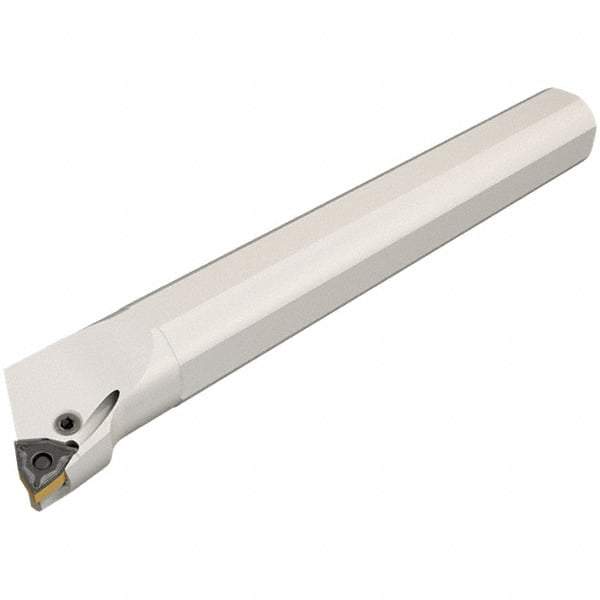

Iscar - 32mm Min Bore Diam, 250mm OAL, 25mm Shank Diam, S-PWLN Indexable Boring Bar - 47mm Max Bore Depth, WNM.. 0804.. Insert, Lever Holding Method
Item #: 60925062
Brand: Iscar
Model #: 3601103
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-PWLN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 47.00 |
| Maximum Bore Depth (Decimal Inch) | 1.8504 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | WNM.. 0804.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Lever |
| Rake | Negative |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Rake Angle | -12.5 |
| Complete Insert Compatibility | WNMA 080408; WNMA 080408-WG; WNMA 080412; WNMA 080416; WNMG 080404-GN; WNMG 080404-NF; WNMG 080404-PP; WNMG 080404-TF; WNMG 080408-GN; WNMG 080408-NF; WNMG 080408-PP; WNMG 080408-TF; WNMG 080412-GN; WNMG 080412-NF; WNMG 080412-PP; WNMG 080412-TF; WNMG 080 |
| Toolholder Material | Steel |
