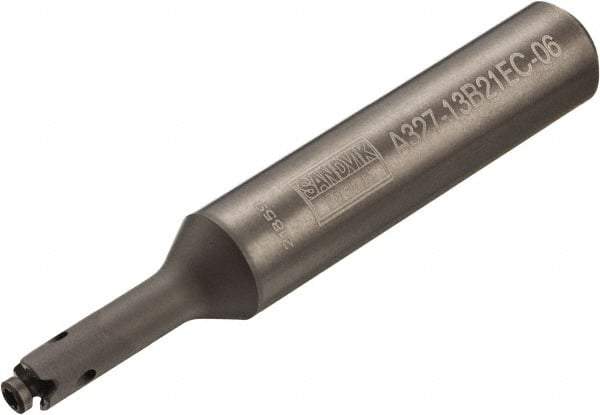

Sandvik Coromant - External Thread, Right Hand Cut, 5/8" Shank Width x 5/8" Shank Height Indexable Threading Toolholder - 93.5mm OAL, 327R14 Insert Compatibility, A327-xxB Toolholder, Series CoroMill 327
Item #: 61241980
Brand: Sandvik Coromant
Model #: 5722538
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 3.6811 |
| Overall Length (mm) | 93.50 |
| Insert Compatibility | 327R14 |
| Series | CoroMill 327 |
| Toolholder Style | A327-xxB |
| Through Coolant | Yes |
| Back of Bar to Cutting Edge (mm) | 93.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.6811 |
| Shank Length (Decimal Inch) | 3.6811 |
| Toolholder Material | Steel |
