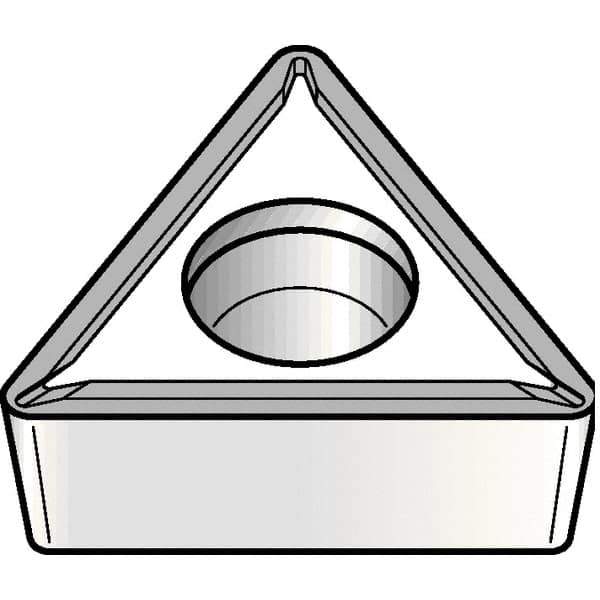

Kennametal - TPMT1.81.51 LF Grade KCP25B Carbide Turning Insert - TiOCN Finish, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 61284675
Brand: Kennametal
Model #: 5698196
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Insert Size | 1.81.51 |
| Material | Carbide |
| Length (mm) | 9.63 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KCP25B |
| Coating | TiOCN |
| Chip Breaker | LF |
| Insert Length (Decimal Inch) | 0.3791 |
| Hole Diameter (mm) | 2.65 |
| Hole Diameter (Decimal Inch) | 0.1043 |
| ISO Number | TPMT090204LF |
| Relief Angle | 11 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Insert Holding Method | Screw |
| Shape | Triangle |
