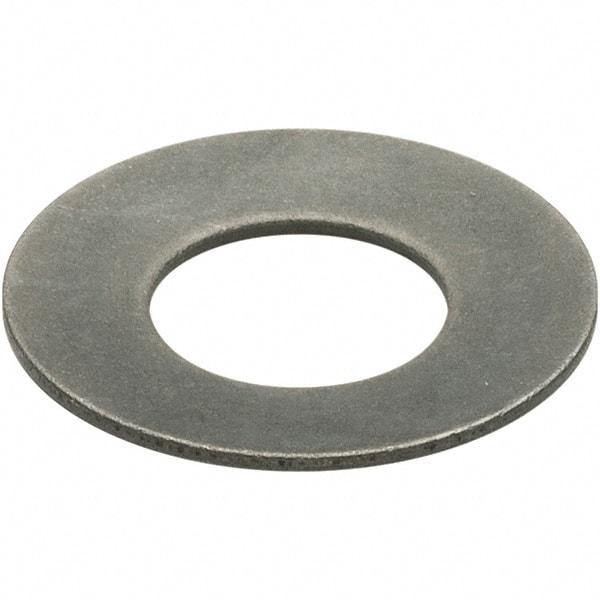

Associated Spring Raymond - 4.0158" ID, Grade 1075 High Carbon Steel, Oil Finish, Belleville Disc Spring - 7-7/8" OD, 0.4921" High, 0.2362" Thick
Item #: 61416418
Brand: Associated Spring Raymond
Model #: BD200600
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 4.0158 |
| Inside Diameter (mm) | 102.00 |
| Material | High Carbon Steel |
| Material Grade | 1075 |
| Outside Diameter (Decimal Inch) | 7.8740 |
| Outside Diameter (mm) | 200.00 |
| Thickness (mm) | 6.00 |
| Thickness (Decimal Inch) | 0.2362 |
| Overall Height (mm) | 12.50 |
| Overall Height (Decimal Inch) | 0.4921 |
| Deflection (Decimal Inch) | 0.2067 |
| Deflection (mm) | 5.25 |
| Load at Deflection (Lb.) | 8113.80 |
| Load at Deflection (N) | 36092.00 |
| Finish/Coating | Oil |
| Fastener Standard | DIN 2093 |
