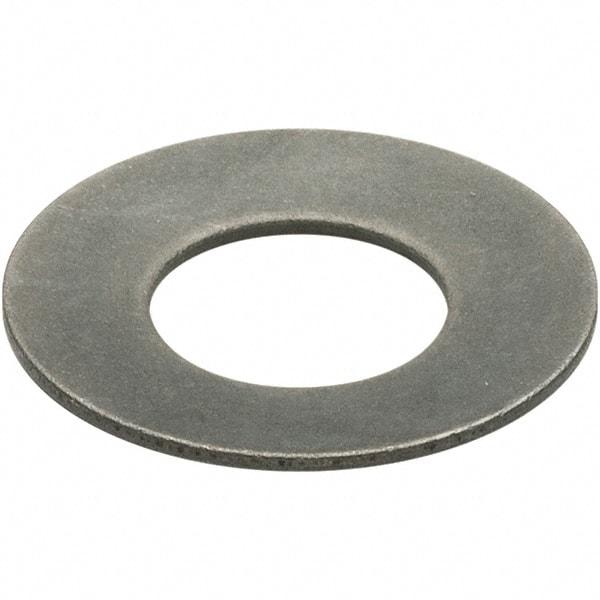

Associated Spring Raymond - 5" ID, Grade 1075 High Carbon Steel, Oil Finish, Belleville Disc Spring - 9.8425" OD, 0.5827" High, 0.2559" Thick
Item #: 61416558
Brand: Associated Spring Raymond
Model #: BD250650
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 5.0000 |
| Inside Diameter (mm) | 127.00 |
| Material | High Carbon Steel |
| Material Grade | 1075 |
| Outside Diameter (Decimal Inch) | 9.8425 |
| Outside Diameter (mm) | 250.00 |
| Thickness (mm) | 6.50 |
| Thickness (Decimal Inch) | 0.2559 |
| Overall Height (mm) | 14.80 |
| Overall Height (Decimal Inch) | 0.5827 |
| Deflection (Decimal Inch) | 0.2303 |
| Deflection (mm) | 5.85 |
| Load at Deflection (Lb.) | 11338.90 |
| Load at Deflection (N) | 50438.00 |
| Finish/Coating | Oil |
| Fastener Standard | DIN 2093 |
