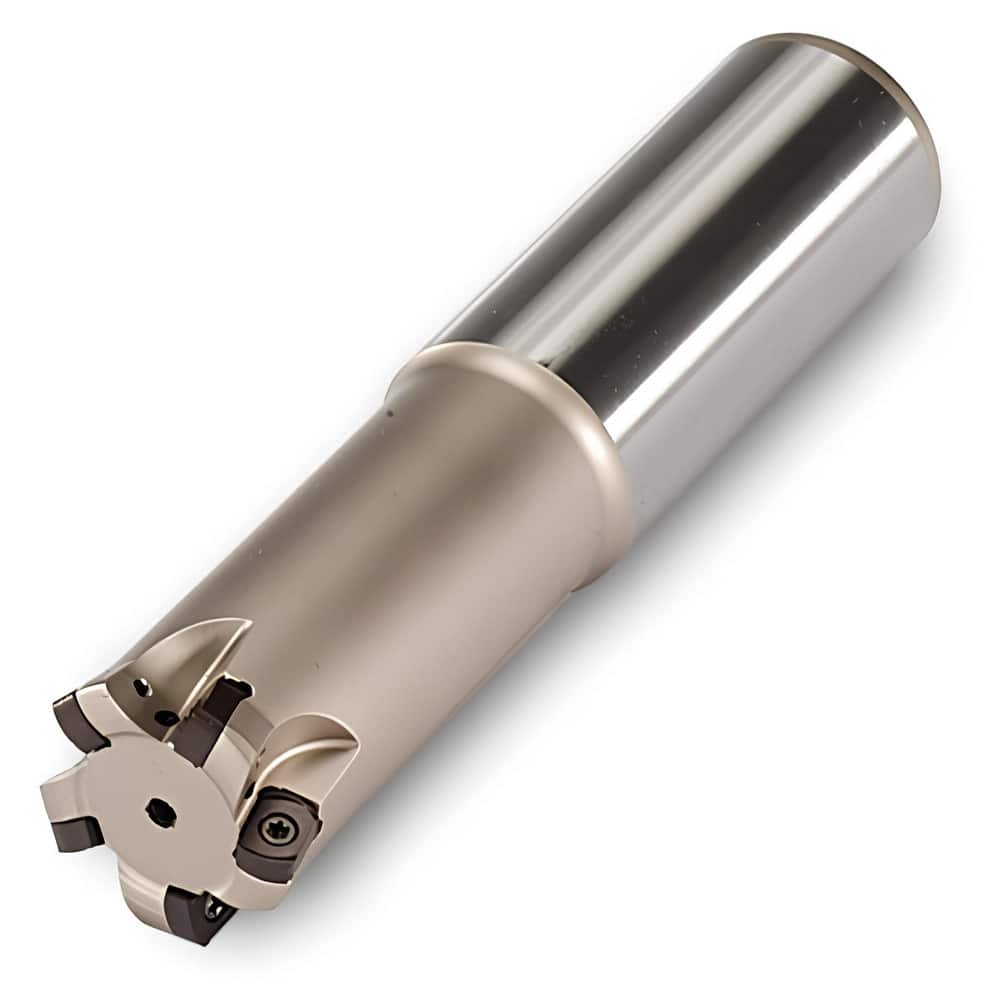

Indexable High-Feed End Mill: 7/8″ Cut Dia, 0.8465″ Cylindrical Shank Uses 3 UNLU Inserts, 0.043″ Max Depth, 7-3/4″ OAL, Through Coolant
Item #: 61442935
Brand: Ingersoll Cutting Tools
Model #: 3029342
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.5730 |
| Maximum Cutting Diameter (Decimal Inch) | 0.8750 |
| Maximum Cutting Diameter (Inch) | 7/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.0430 |
| Toolholder Style | 1TG1F |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.8465 |
| Shank Diameter (mm) | 0.84 |
| Maximum Ramping Angle | 1.15 |
| Compatible Insert Style | UNLU |
| Compatible Insert Size Code | 0603 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 7.7500 |
| Overall Length (Inch) | 7-3/4 |
| Overall Length (mm) | 7.75 |
| Series | 1TG1F |
| Flute Type | Straight |
| Head Length (Decimal Inch) | 1.7500 |
| Functional Length (Decimal Inch) | 1.7500 |
| Projection (Decimal Inch - 4 Decimals) | 1.9300 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
