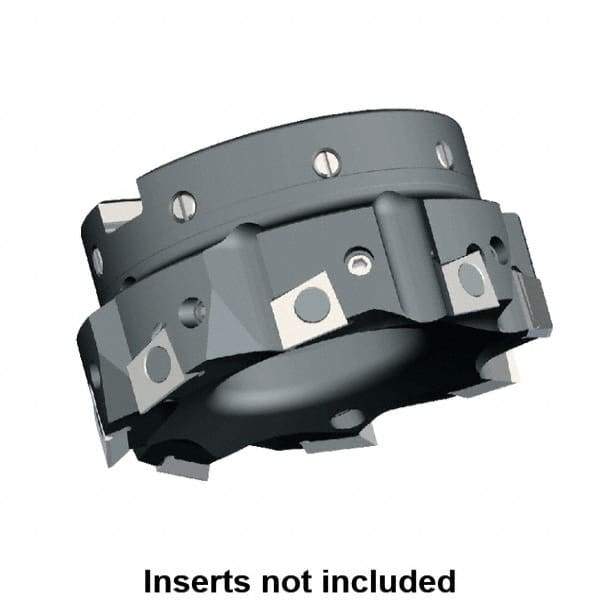

Kennametal - 3 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 9.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, BGHX 15L5... Insert Compatibility, Series Fix-Perfect
Item #: 61957650
Brand: Kennametal
Model #: 2033774
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | BGHX 15L5... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Clamp |
| Cutter Style | CM |
| Number of Flutes | 3 |
| Cutting Rake Angle | 24 |
| Rake | Positive |
| Hub Diameter (mm) | 51.00 |
| Hub Diameter (Decimal Inch) | 2.0079 |
| Maximum RPM | 10110 |
| Complete Insert Compatibility | BGHX 15L5PCFR |
