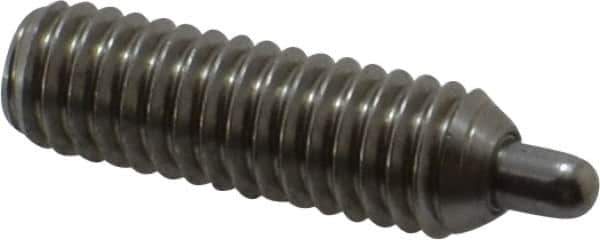

Vlier - 5/16-18, 1" Thread Length, 3/16" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.133 - 0.135" Max Plunger Diam, 1" Plunger Length, 1.5 Lb Init End Force, 4.5 Lb Final End Force, 0.093" Hex
Item #: 62119748
Brand: Vlier
Model #: SSPH57
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 5/16-18 |
| Thread Length (Inch) | 1 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.1350 |
| Plunger Projection (Inch) | 3/16 |
| Locking Element | No |
| Minimum Plunger Diameter (Decimal Inch) | 0.1330 |
| Body Length (Inch) | 1 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 1 |
| Final End Force (Lb.) | 4.50 |
| Initial End Force (Lb.) | 1.50 |
| Hex Size (Decimal Inch) | 0.0930 |
