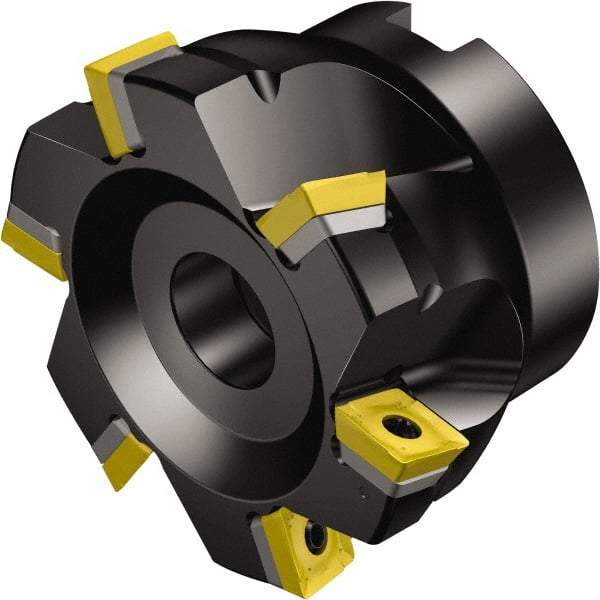

Sandvik Coromant - 7 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 50.0126mm High, 490R-1404 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 62362058
Brand: Sandvik Coromant
Model #: 5844014
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.01 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | 490R-1404 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | A490 |
| Number of Flutes | 7 |
| Rake | Positive (Axial) |
| Hub Diameter (mm) | 38.10 |
| Hub Diameter (Decimal Inch) | 1.5000 |
| Hub Diameter (Inch) | 1-1/2 |
| Keyway Width (mm) | 16.08 |
| Keyway Width (Decimal Inch) | 0.6331 |
| Maximum Body Diameter (Decimal Inch) | 3.9370 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 8800 |
| Pitch | Close |
| Cutting Edge Length (Decimal Inch) | 0.3937 |
| ISO Number | A490-102R38-14M |
| Complete Insert Compatibility | 490R-1404 |
| Toolholder Material | Steel |
