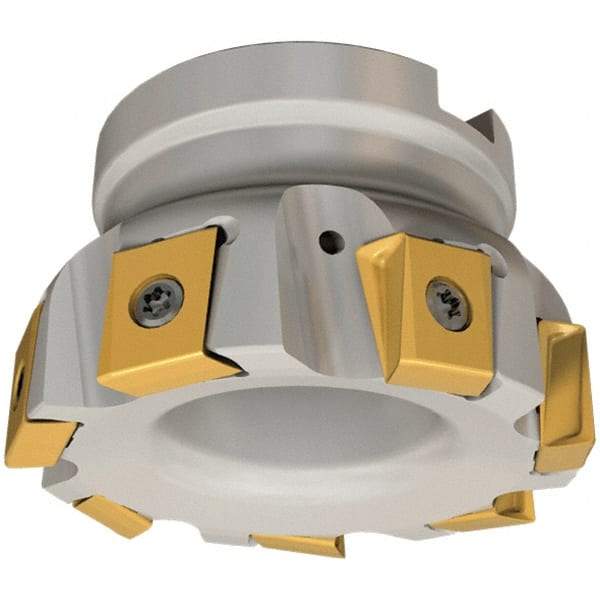

Iscar - 8 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 16mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, T490 LN.T 1607 Insert Compatibility, Through Coolant, Series Helitang
Item #: 62620612
Brand: Iscar
Model #: 3105381
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | T490 LN.T 1607 |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 16.00 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | T490 FLN-16 |
| Number of Flutes | 8 |
| Keyway Width (mm) | 14.40 |
| Cutting Edge Length (Decimal Inch) | 0.6300 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 1.6930 |
| Complete Insert Compatibility | T490 LNMT/LNHT 1607 |
