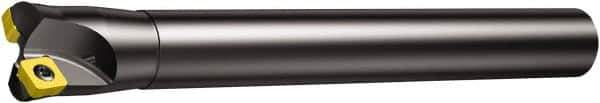

Sandvik Coromant - 24mm Cut Diam, 1.2mm Max Depth of Cut, 1-1/4" Shank Diam, 10" OAL, Indexable Chamfer & Angle End Mill - R210-090412M- Insert Style, Cylindrical Shank, 10° Lead Angle, Through Coolant
Item #: 62742267
Brand: Sandvik Coromant
Model #: 5738770
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 24.00 |
| Cutting Diameter (Decimal Inch) | 0.9449 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 10 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Insert Style | R210-090412M- |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Maximum Depth of Cut (mm) | 1.20 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | CoroMill 210 |
| Weldon Flat | No |
| ISO Number | RA210-038O32-09M |
