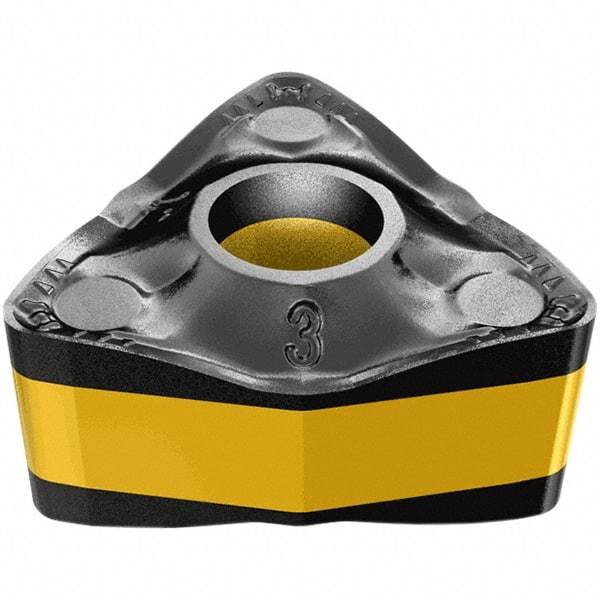

Iscar - WNMX451 M4MW Grade IC807 Carbide Turning Insert - TiAlN/TiN Finish, 80° Trigon, 1/2" Inscr Circle, 0.2669 Thick, 1/64" Corner Radius
Item #: 63077606
Brand: Iscar
Model #: 5509056
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMX |
| Insert Size | 451 |
| Material | Carbide |
| Length (mm) | 8.70 |
| Length (Decimal Inch) | 0.3425 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.2669 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN/TiN |
| Material Grade | Submicron |
| Chip Breaker | M4MW |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Series | Heliturn LD |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
