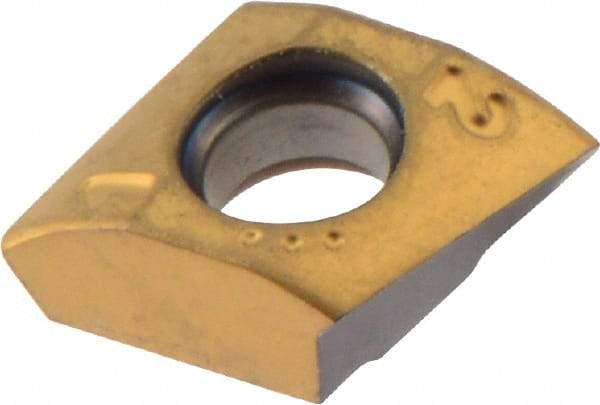

Iscar - T290 LNMT050204 TR Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.2283" Thick, 0.4mm Corner Radius
Item #: 63105522
Brand: Iscar
Model #: 5605980
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T290 LNMT |
| Insert Size | 050204 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (Decimal Inch) | 0.1102 |
| Length (Decimal Inch) | 0.2244 |
| Thickness (Decimal Inch) | 0.2283 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | TR |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| ISO Number | T290 LNMT 050204TR |
