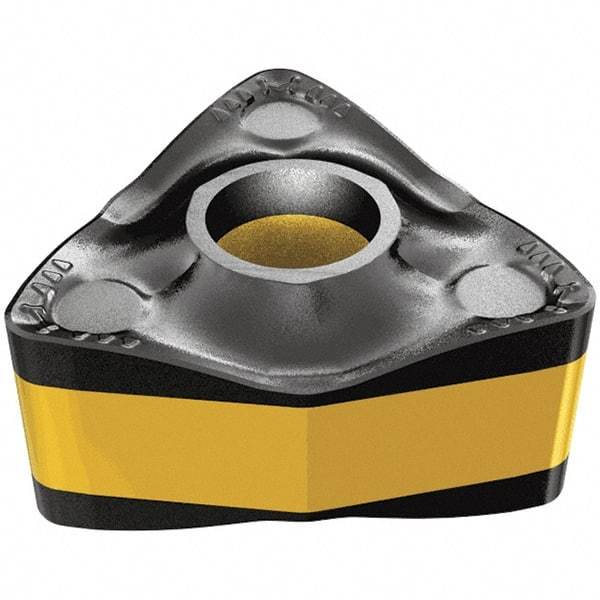

Iscar - WNMX342 M3PW Grade IC807 Carbide Turning Insert - TiAlN/TiN Finish, 80° Trigon, 3/8" Inscr Circle, 0.1736 Thick, 1/32" Corner Radius
Item #: 63105845
Brand: Iscar
Model #: 5507992
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMX |
| Insert Size | 342 |
| Material | Carbide |
| Length (mm) | 6.50 |
| Length (Decimal Inch) | 0.2559 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1736 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN/TiN |
| Material Grade | Submicron |
| Chip Breaker | M3PW |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Series | Heliturn LD |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
