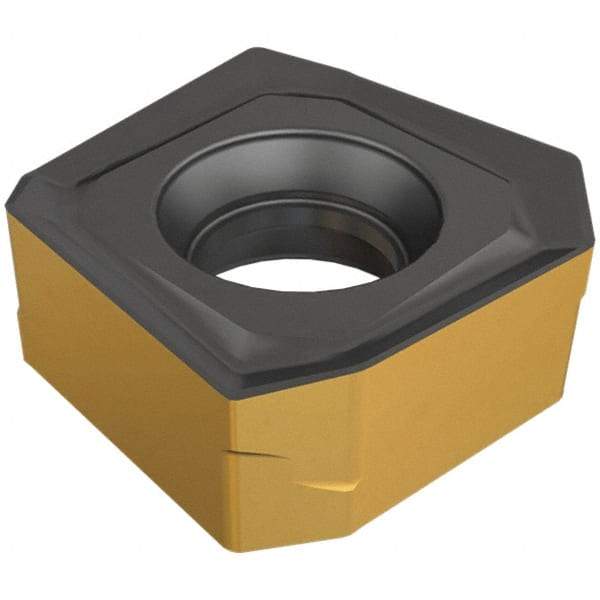

Iscar - S845 SNMU1305 MM Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 0.2441" Thick, 13mm Inscribed Circle, 0.8mm Corner Radius
Item #: 63124556
Brand: Iscar
Model #: 5606331
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | S845 SNMU |
| Insert Size | 1305 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (Decimal Inch) | 0.2441 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| ISO Number | S845 SNMU 1305ANR-MM |
