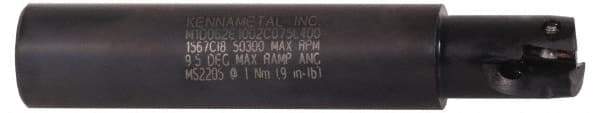

Kennametal - 5/8" Cut Diam, 0.396" Max Depth of Cut, 3/4" Shank Diam, 4" OAL, Indexable Square Shoulder End Mill - EC10.., EP10.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant
Item #: 63216683
Brand: Kennametal
Model #: 3742519
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (Inch) | 5/8 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 4.0000 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3960 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | Mill 1-10 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.0000 |
| Weldon Flat | No |
| Insert Compatibility | EC10.., EP10.. |
| Maximum RPM | 50300 |
| Coolant Hole Diameter (Decimal Inch) | 0.1960 |
