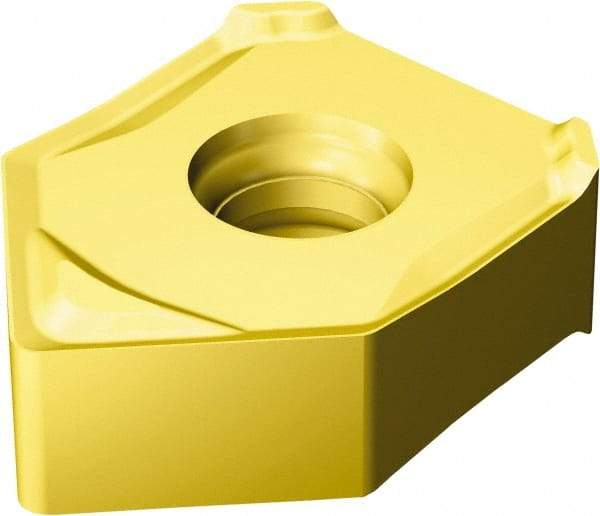

Sandvik Coromant - 345N1305 KW8 Grade 1020 Carbide Milling Insert - TiAlN Finish, 5.56mm Thick, 13mm Inscribed Circle, 1mm Corner Radius
Item #: 63637979
Brand: Sandvik Coromant
Model #: 5861282
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 345N |
| Insert Size | 1305 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 4.80 |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Relief Angle | 0.000 |
| Rake Angle | 22 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | KW8 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Negative Land |
| Manufacturers Catalog Number | 5861282 |
| ISO Number | 345N-1305E-KW8 1020 |
