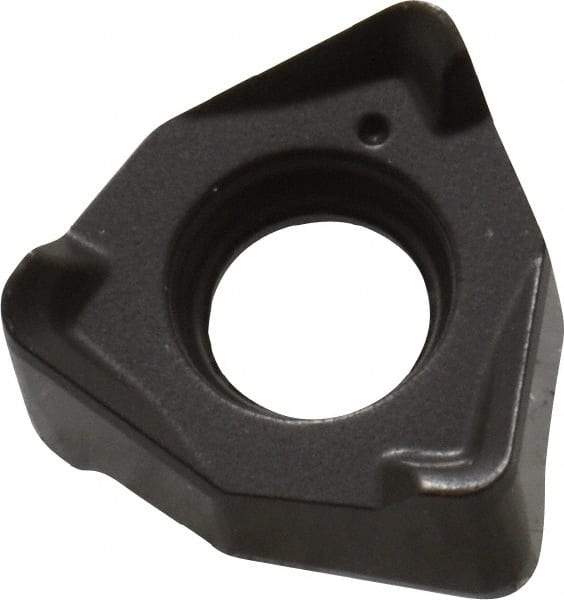

Seco - XNEX040308 M08 Grade MK1500 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.264" Inscribed Circle, 0.031" Corner Radius
Item #: 64614530
Brand: Seco
Model #: 70133
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 040308 |
| Material | Carbide |
| Manufacturer's Grade | MK1500 |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.2640 |
| Inscribed Circle (Decimal Inch) | 0.2640 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Shape | Trigon |
| Insert Hand | Right Hand |
| Chipbreaker | M08 |
| ISO Number | XNEX040308TR-M08 |
