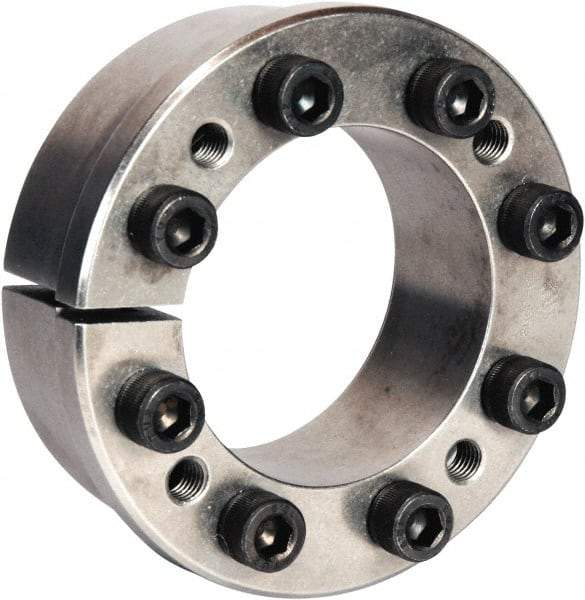

Climax Metal Products - M8 Thread, 1-11/16" Bore Diam, 2.953" OD, Shaft Locking Device - 7 Screws, 16,206 Lb Axial Load, 3.287" OAW, 0.787" Thrust Ring Width, 1,139 Ft/Lb Max Torque
Item #: 64642499
Brand: Climax Metal Products
Model #: C133E-168
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M8 |
| Bore Diameter (Inch) | 1-11/16 |
| Bore Diameter (Decimal Inch) | 1.6875 |
| Outside Diameter (Decimal Inch) | 2.9530 |
| Thrust Ring Width (Decimal Inch) | 0.787 |
| Overall Width (Decimal Inch) | 3.2870 |
| Axial Load Lbs (Pounds) | 16206 |
| Maximum Torque (Ft/Lb) | 1139 |
| Number of Screws | 7.000 |
| Contact Pressure on Hub (psi) | 18489.000 |
| Contact Pressure on Shaft (psi) | 32351.000 |
| Screw Seating Torque (In/Lb) | 360.000 |
