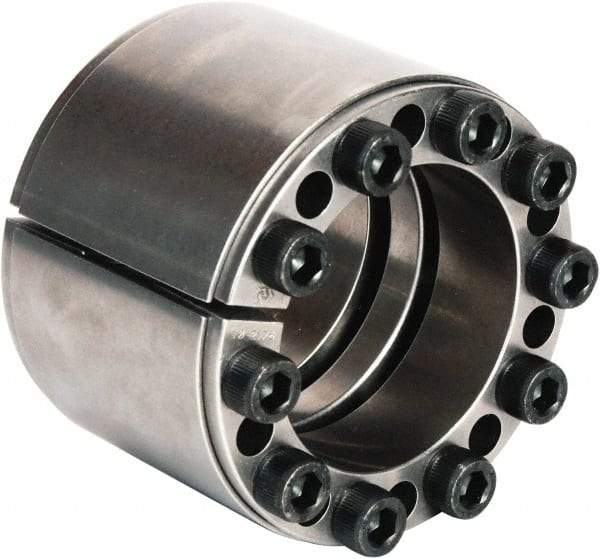

Climax Metal Products - M8 Thread, 38mm Bore Diam, 75mm OD, Shaft Locking Device - 7 Screws, 32,411 Lb Axial Load, 2.953" OAW, 1.732" Thrust Ring Width, 2,020 Ft/Lb Max Torque
Item #: 64642564
Brand: Climax Metal Products
Model #: C405M-38X75
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M8 |
| Bore Diameter (Decimal Inch) | 1.4960 |
| Bore Diameter (mm) | 38.000 |
| Outside Diameter (Decimal Inch) | 2.9530 |
| Outside Diameter (mm) | 75.0000 |
| Thrust Ring Width (Decimal Inch) | 1.732 |
| Overall Width (Decimal Inch) | 2.9530 |
| Axial Load Lbs (Pounds) | 32411 |
| Maximum Torque (Ft/Lb) | 2020 |
| Number of Screws | 7.000 |
| Contact Pressure on Hub (psi) | 21752.000 |
| Contact Pressure on Shaft (psi) | 42931.000 |
| Screw Seating Torque (In/Lb) | 360.000 |
