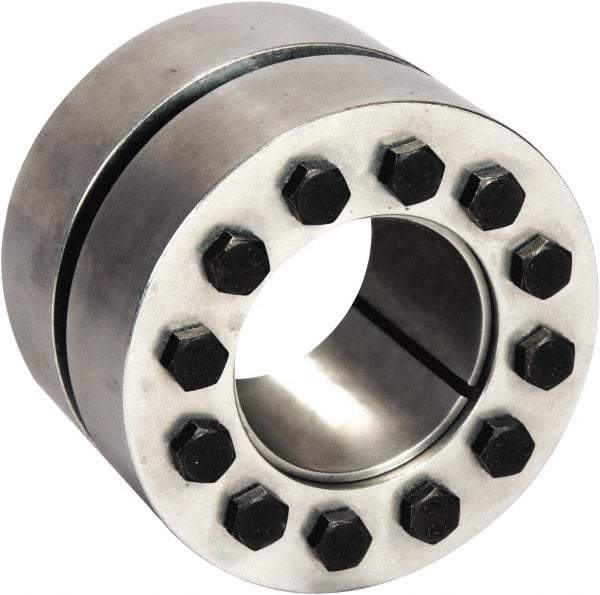

Climax Metal Products - M12 Thread, 2-15/16" Bore Diam, 170mm OD, Shaft Locking Device - 10 Screws, 92,789 Lb Axial Load, 6.693" OAW, 3.701" Thrust Ring Width, 11,357 Ft/Lb Max Torque
Item #: 64649924
Brand: Climax Metal Products
Model #: C600E-293
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M12 |
| Bore Diameter (Inch) | 2-15/16 |
| Bore Diameter (Decimal Inch) | 2.9375 |
| Outside Diameter (Decimal Inch) | 6.6930 |
| Outside Diameter (mm) | 170.0000 |
| Thrust Ring Width (Decimal Inch) | 3.701 |
| Overall Width (Decimal Inch) | 6.6930 |
| Axial Load Lbs (Pounds) | 92789 |
| Maximum Torque (Ft/Lb) | 11357 |
| Number of Screws | 10.000 |
| Screw Seating Torque (In/Lb) | 888.000 |
