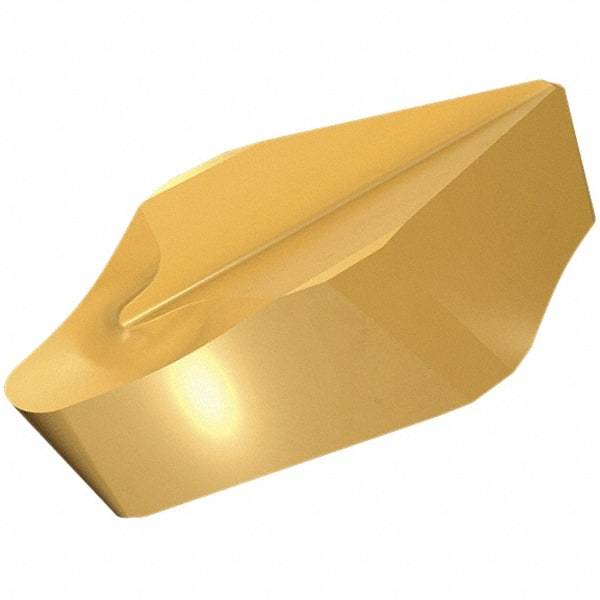

Iscar - 8YZ35V080GIPA Grade IC4, 8mm Cutting Width Carbide Grooving Insert - 4.8mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, Uncoated
Item #: 64963960
Brand: Iscar
Model #: 6402851
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPA |
| Insert Size | 8YZ35V080 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 4.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Manufacturer's Grade | IC4 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | Cut Grip |
| Overall Width (mm) | 8.00 |
| Overall Width (Decimal Inch) | 0.3150 |
| Included Angle | 35 |
