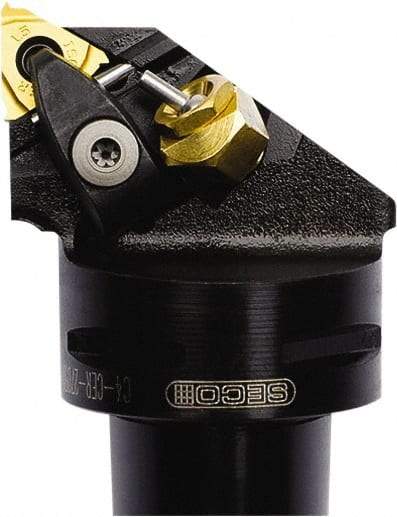

Seco - External Thread, Right Hand Cut, 50mm Shank Width x 50mm Shank Height Indexable Threading Toolholder - 27ER Insert Compatibility, CE Toolholder, Series Snap Tap
Item #: 65934929
Brand: Seco
Model #: 76701
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 50.00 |
| Shank Width/Diameter (Decimal Inch) | 1.9685 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | 27ER |
| Series | Snap Tap |
| Toolholder Style | CE |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
