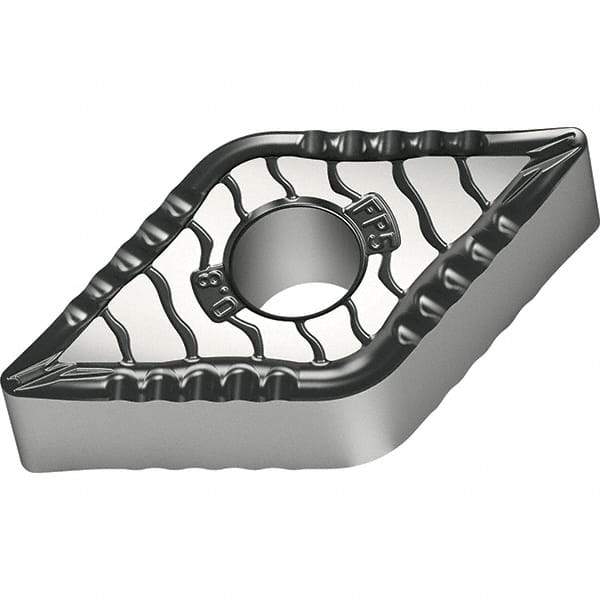

Walter - DNMG330.5 FP5 Grade WPP10S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 0.0079" Corner Radius
Item #: 65946022
Brand: Walter
Model #: 6059968
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 330.5 |
| Material | Carbide |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6102 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | WPP10S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P10/K20 |
| Chip Breaker | FP5 |
| ISO Number | DNMG110402-FP5 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMG110402-FP5 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 55 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
