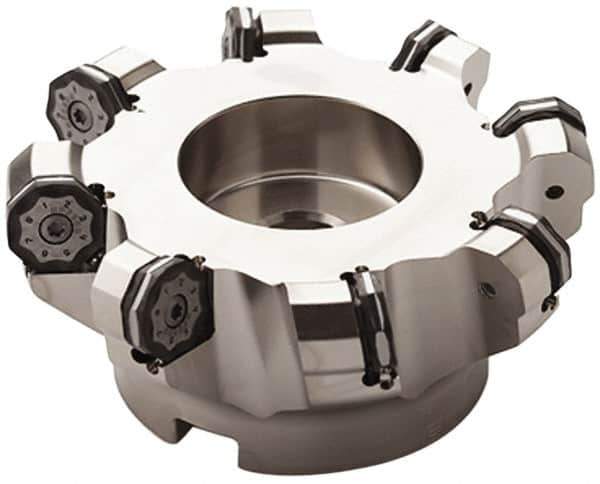

Seco - 5.51" Cut Diam, 1-1/2" Arbor Hole, 0.217" Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill - 15 Inserts, ON.. 0905 Insert, Right Hand Cut, 15 Flutes, Series R220.48
Item #: 65984775
Brand: Seco
Model #: 45144
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 5.5100 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 40 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | ON.. 0905 |
| Series | R220.48 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Wedge |
| Cutter Style | R220.48 |
| Number of Flutes | 15 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum RPM | 2700 |
| Cutting Direction | Right Hand |
| Pitch | Super Close |
