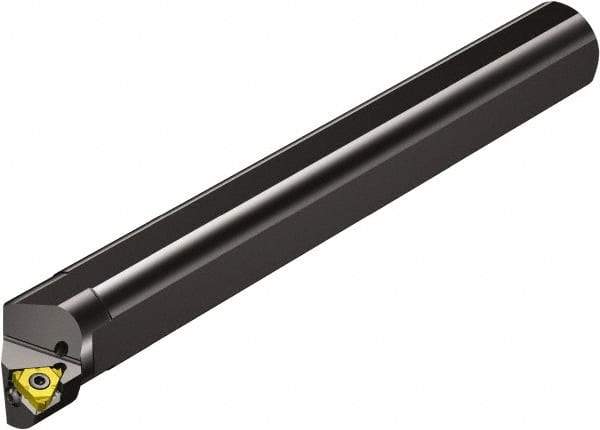

Sandvik Coromant - Internal Thread, Left Hand Cut, 1-1/4" Shank Width x 1.181" Shank Height Indexable Threading Toolholder - 14" OAL, Various Insert Compatibility, 266.LL Toolholder, Series CoroThread 266
Item #: 66400649
Brand: Sandvik Coromant
Model #: 5757726
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.1810 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (Inch) | 14 |
| Insert Compatibility | 266LL-16AC01F100E; 266LL-16AC01F120E; 266LL-16MM01A050M; 266LL-16MM01A075M; 266LL-16MM01A100M; 266LL-16MM01A125M; 266LL-16MM01A150M; 266LL-16MM01A175M; 266LL-16MM01A200M; 266LL-16MM01A250M; 266LL-16MM01A300M; 266LL-16NT01A115M; 266LL-16NT01A140M; 266LL-16 |
| Series | CoroThread 266 |
| Toolholder Style | 266.LL |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8660 |
| Neck Diameter (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.2200 |
| Shank Length (Decimal Inch) | 12.7800 |
| Maximum Bore Depth (Decimal Inch) | 3.7500 |
| Minimum Bore Diameter (Decimal Inch) | 1.5800 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Pitch Range | 64 - 8 |
| Toolholder Material | Steel |
