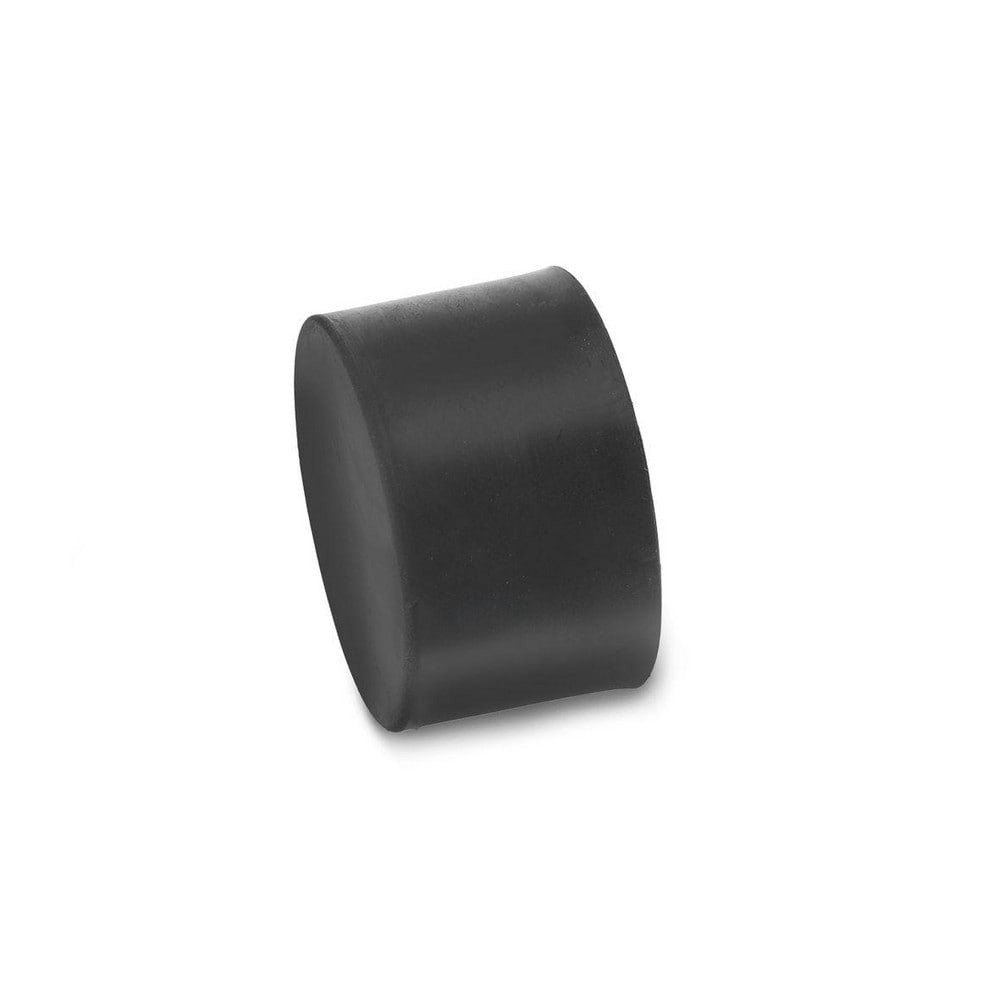

GN352-15-20-M4-E-40 RUBBER BUMPER
Item #: 06807887
Brand: J.W. Winco
Model #: 352-15-20-M4-E-40
Product Specifications
| Isolator Type | Standard Deflection |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 135.00 |
| Top Diameter | 15.00 |
| Bottom Diameter | 15 |
| Thread Size | M4 |
| Overall Width | 15 in |
| Overall Diameter | 15 mm |
| Deflection | 0.2000 |
| Hardness Rating | Shore 40A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 4.0000 |
| Thread Pitch | 0.7 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 20 mm |
| UNSPSC Code | 23153130 |
