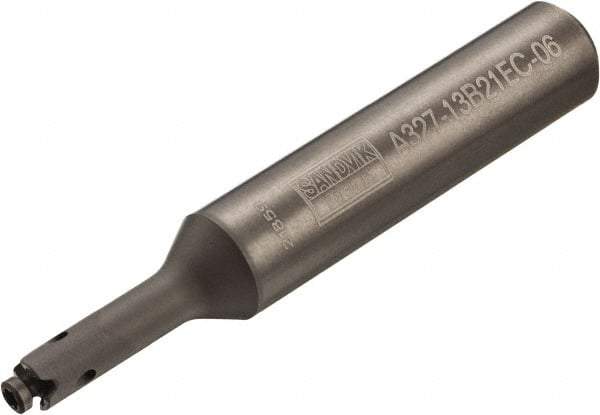

Sandvik Coromant - CoroMill 327 5/8" Weldon Shank Milling Tip Insert Holder & Shank - 79.21mm Projection, 0.4724" Neck Diam, 12 Neck Thread, 12mm Nose Diam, 154.22mm OAL, Steel A327-xxB Tool Holder
Item #: 66812876
Brand: Sandvik Coromant
Model #: 5722482
Exact Tooling IR#: 04
Features and Benefits
Weldon flats, also known as Weldon Shanks, are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CoroMill 327 |
| Shank Type | Weldon Shank |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.625 |
| Projection (mm) | 79.21 |
| Projection (Decimal Inch) | 3.1184 |
| Neck Diameter (Decimal Inch) | 0.4724 |
| Neck Thread Size | 12 |
| Nose Diameter (mm) | 12.00 |
| Nose Diameter (Decimal Inch) | 0.4724 |
| Toolholder Material | Steel |
| Overall Length (mm) | 154.22 |
| Overall Length (Decimal Inch) | 6.0715 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Head Length (Decimal Inch) | 3.1184 |
| Effective Length (mm) | 79.21 |
| Maximum Diameter (mm) | 12.00 |
| Maximum Diameter (Decimal Inch) | 0.4724 |
| Shank Material | Carbide |
| Shank Shape | Round |
| Thread Size Connection to Tip | 12 |
| Toolholder Style | A327-xxB |
