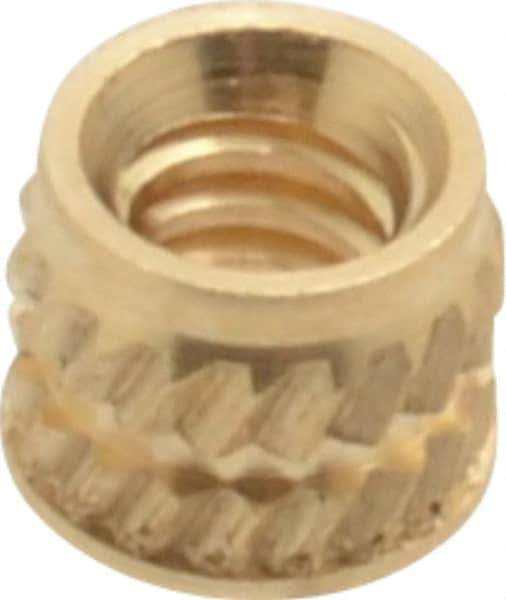

E-Z LOK - #4-40, 0.153" Small to 0.159" Large End Hole Diam, Brass Single Vane Tapered Hole Threaded Insert - 0.172" Insert, 0.157" Pilot Diam, 0.135" OAL, 0.093" Min Wall Thickness
Item #: 67214122
Brand: E-Z LOK
Model #: TH-004-SV
Exact Tooling IR#: 04
Features and Benefits
Single vane inserts have one extruding lip, called a vane, along the lower outer shaft of the insert.
| Product Specifications | |
|---|---|
| Type | Single Vane |
| System of Measurement | Inch |
| Thread Size (Inch) | #4-40 |
| Overall Length (Decimal Inch) | 0.1350 |
| Insert Diameter (Decimal Inch) | 0.1720 |
| Pilot Diameter (Decimal Inch) | 0.1570 |
| Small End Hole Diameter (Decimal Inch) | 0.1530 |
| Large End Hole Diameter (Decimal Inch) | 0.1590 |
| Minimum Wall Thickness (Decimal Inch) | 0.0930 |
| For Material Type | Plastic |
| Material | Brass |
| Thread Standard | UNC |
