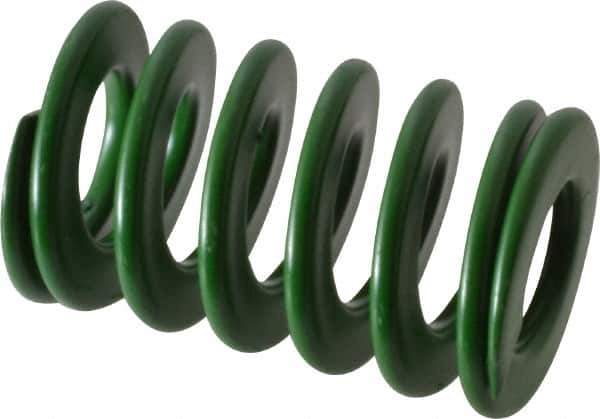

Associated Spring Raymond - 32mm Hole Diam, 16mm Rod Diam, 2" Free Length, Green Die Spring - 1340 N Max Deflection, 20mm Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 67898882
Brand: Associated Spring Raymond
Model #: 203-608
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 32.00 |
| Rod Diameter (mm) | 16.00 |
| Free Length (mm) | 51.00 |
| Free Length (Inch) | 2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 1340.00 |
| Maximum Deflection (mm) | 20.00 |
| Travel To Solid Load (mm) | 20.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
