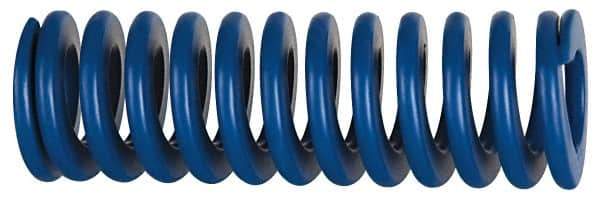

Associated Spring Raymond - 40mm Hole Diam, 20mm Rod Diam, 3" Free Length, Blue Die Spring - 3024 N Max Deflection, 28mm Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 67900100
Brand: Associated Spring Raymond
Model #: 204-712
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 40.00 |
| Rod Diameter (mm) | 20.00 |
| Free Length (mm) | 76.00 |
| Free Length (Inch) | 3 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 3024.00 |
| Maximum Deflection (mm) | 28.00 |
| Travel To Solid Load (mm) | 28.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
