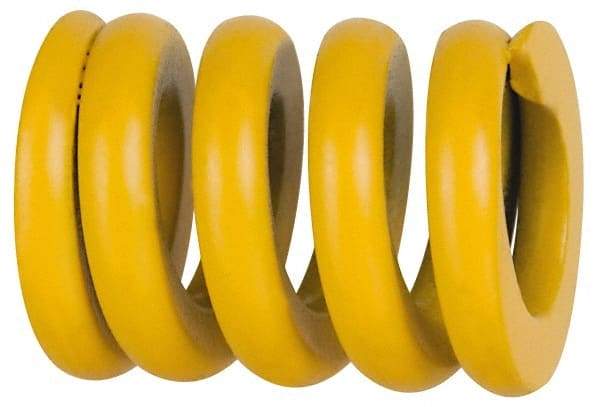

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 4-1/2" Free Length, Yellow Die Spring - 2485.3 N Max Deflection, 29mm Max Deflection, Extra Strong, Chromium Alloy Steel
Item #: 67901918
Brand: Associated Spring Raymond
Model #: 206-518
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (mm) | 115.00 |
| Free Length (Inch) | 4-1/2 |
| Load Type | Extra Strong |
| Color | Yellow |
| Maximum Deflection Load (N) | 2485.30 |
| Maximum Deflection (mm) | 29.00 |
| Travel To Solid Load (mm) | 29.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
