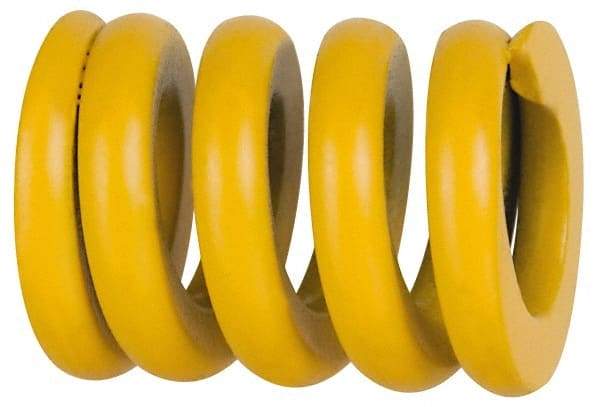

Associated Spring Raymond - 50mm Hole Diam, 25mm Rod Diam, 6" Free Length, Yellow Die Spring - 10112 N Max Deflection, 32mm Max Deflection, Extra Strong, Chromium Alloy Steel
Item #: 67902270
Brand: Associated Spring Raymond
Model #: 206-820
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 50.00 |
| Rod Diameter (mm) | 25.00 |
| Free Length (Inch) | 6 |
| Load Type | Extra Strong |
| Color | Yellow |
| Maximum Deflection Load (N) | 10112.00 |
| Maximum Deflection (mm) | 32.00 |
| Travel To Solid Load (mm) | 32.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
