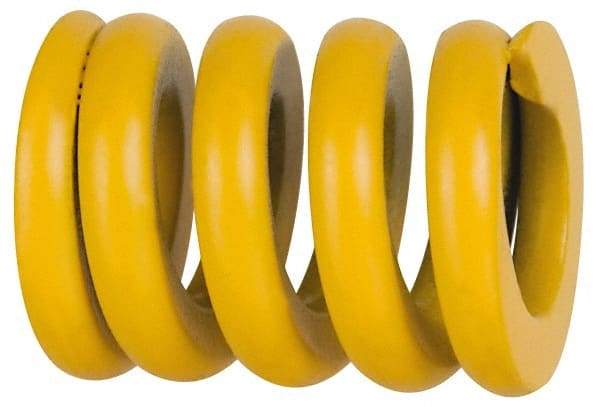

Associated Spring Raymond - 50mm Hole Diam, 25mm Rod Diam, 10" Free Length, Yellow Die Spring - 9537 N Max Deflection, 51mm Max Deflection, Extra Strong, Chromium Alloy Steel
Item #: 67902296
Brand: Associated Spring Raymond
Model #: 206-832
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 50.00 |
| Rod Diameter (mm) | 25.00 |
| Free Length (mm) | 203.00 |
| Free Length (Inch) | 10 |
| Load Type | Extra Strong |
| Color | Yellow |
| Maximum Deflection Load (N) | 9537.00 |
| Maximum Deflection (mm) | 51.00 |
| Travel To Solid Load (mm) | 51.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
