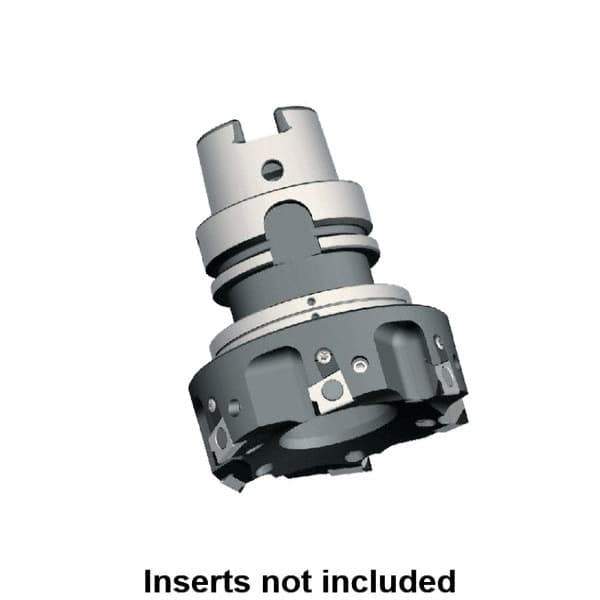

Kennametal - 3 Inserts, 50mm Cut Diam, 63mm Arbor Diam, 9.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 92mm High, BGHX 15L5... Insert Compatibility, Through Coolant, Series Fix-Perfect
Item #: 68281203
Brand: Kennametal
Model #: 1782709
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 92.00 |
| Overall Height (Decimal Inch) | 3.6220 |
| Insert Compatibility | BGHX 15L5... |
| Series | Fix-Perfect |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.50 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Clamp |
| Cutter Style | HSM |
| Number of Flutes | 3 |
| Number of Adjustable Pockets | 3 |
| Maximum RPM | 28660 |
| Complete Insert Compatibility | BGHX 15L5PC.R.. |
