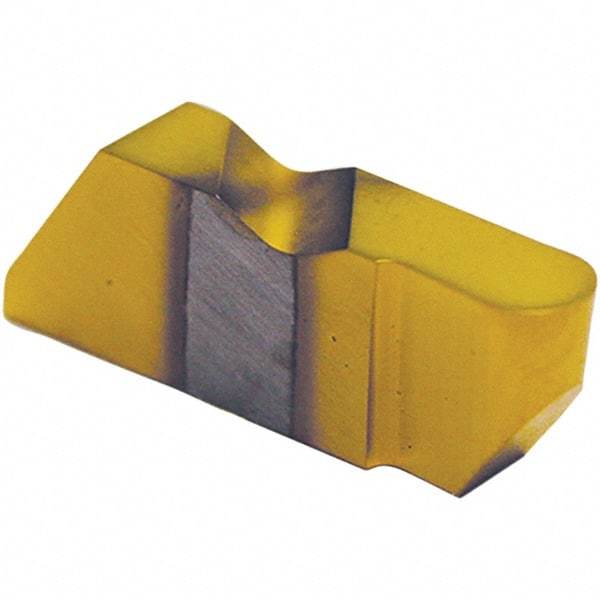

Tool-Flo - 3094FLRD Grade AC3R, 4.8mm Cutting Width Carbide Grooving Insert - 1/4" Max Depth of Cut, Right Hand, 3/32" Corner Radius, TiAlN Finish
Item #: 68354216
Brand: Tool-Flo
Model #: 6336094RAC3R
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLRD |
| Insert Size | 3094 |
| Material | Carbide |
| Cutting Width (mm) | 4.80 |
| Cutting Width (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | AC3R |
| Coating | TiAlN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0940 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Manufacturers Catalog Number | FLRD-3094R |
| Insert Thickness (Decimal Inch) | 0.1950 |
