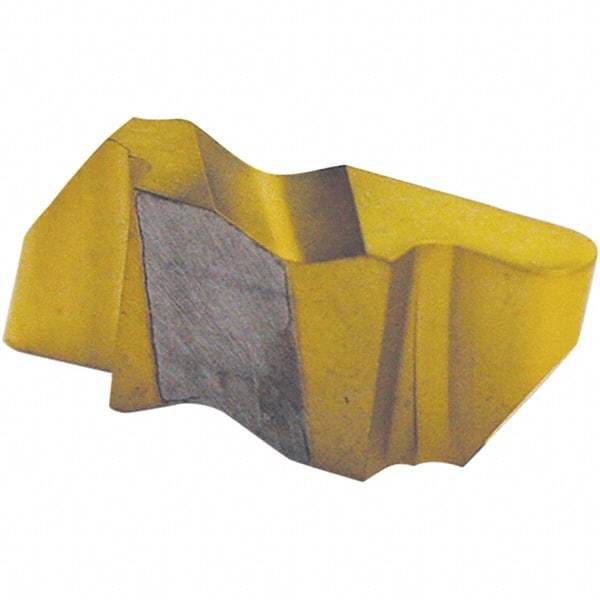

Tool-Flo - 4094FLR Grade C3, 4.8mm Cutting Width Carbide Grooving Insert - 6.35mm Max Depth of Cut, Right Hand, 2.39mm Corner Radius, Uncoated
Item #: 68354869
Brand: Tool-Flo
Model #: 594094RA3
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLR |
| Insert Size | 4094 |
| Material | Carbide |
| Cutting Width (mm) | 4.80 |
| Cutting Width (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Material Grade | Micrograin |
| Manufacturer's Grade | C3 |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.4530 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 2.39 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Series | Flo-Lock |
| Manufacturers Catalog Number | FLR-4094R |
| Insert Thickness (Decimal Inch) | 0.2550 |
