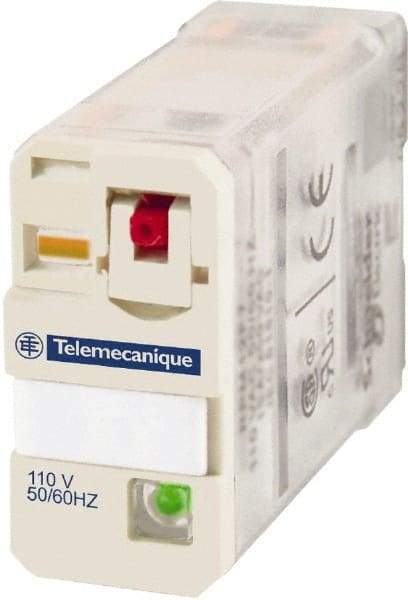

Square D - 5 Pins, Ice Cube Electromechanical Plug-in General Purpose Relay - 15 Amp at 250 VAC, SPDT, 120 VAC, 14mm Wide x 40mm High x 27mm Deep
Item #: 68618487
Brand: Square D
Model #: RPM12F7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Relay Form | Electromechanical |
| Coil Voltage | 120 VAC |
| Terminal Type | Plug-in |
| Contact Form | SPDT |
| Amperage | 15 @ 250 VAC |
| Maximum Power Rating (W) | 1.40 |
| Number of Pins | 5 |
| Base Shape | Ice Cube |
| Overall Height (mm) | 40 |
| Overall Height (Decimal Inch) | 1.5800 |
| Overall Width (mm) | 14 |
| Overall Width (Decimal Inch) | 0.5500 |
| Overall Depth (mm) | 27 |
| Overall Depth (Decimal Inch) | 1.0600 |
| Standards Met | CSA C22.2 No. 14; EAC; EN/IEC 61810-1; REACH; RoHS Compliant; UL 508 |
