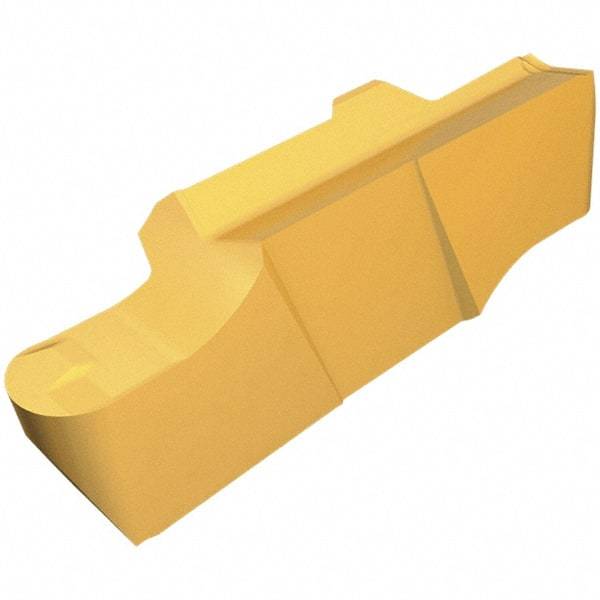

Iscar - 11901GIPI Grade IC808, 1.19mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, Left Hand, 0.1mm Corner Radius, TiAlN Finish
Item #: 68851260
Brand: Iscar
Model #: 6404140
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 11901 |
| Material | Carbide |
| Cutting Width (mm) | 1.19 |
| Cutting Width (Decimal Inch) | 0.0469 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Relief Angle | 8 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Coating Process | PVD |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6181 |
| Series | Cut Grip |
| Overall Width (mm) | 1.19 |
| Overall Width (Decimal Inch) | 0.0469 |
