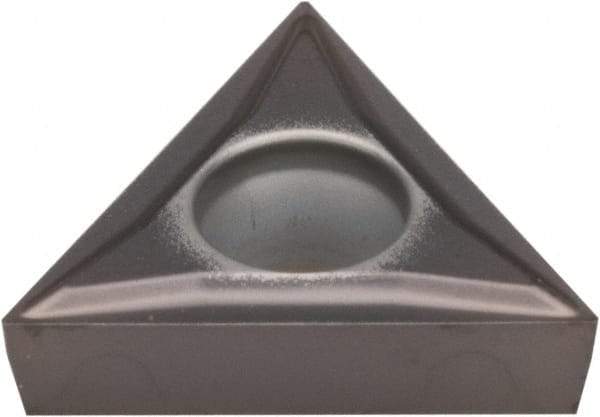

Kennametal - TCGT21.5 LF Grade KCU10 Carbide Turning Insert - AlTiN Finish, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 0.004" Corner Radius
Item #: 69258051
Brand: Kennametal
Model #: 4044820
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 21.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | LF |
| Hole Diameter (Decimal Inch) | 0.1000 |
| ISO Number | TCGT110201LF |
| Relief Angle | 7 |
| Manufacturers Catalog Number | TCGT2150LF |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
