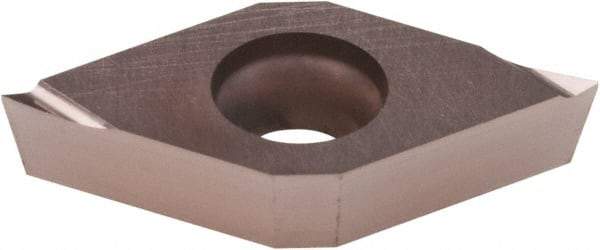

Kennametal - DCGT21.50.1 SF Grade K5020P Carbide Turning Insert - TiN Finish, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.001" Corner Radius
Item #: 69259216
Brand: Kennametal
Model #: 3630379
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 21.50.1 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0010 |
| Manufacturer's Grade | K5020P |
| Coating | TiN |
| Chip Breaker | SF |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | DCGT0702003RSF |
| Relief Angle | 7 |
| Manufacturers Catalog Number | DCGT21501RSF |
| Included Angle | 55 |
| Insert Holding Method | Screw |
| Shape | Diamond |
