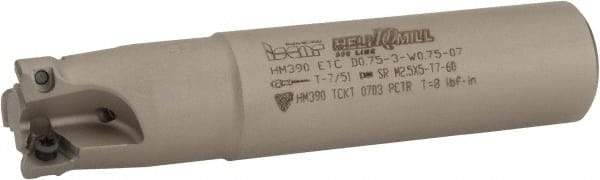

Iscar - 3/4" Cut Diam, 0.2" Max Depth of Cut, 3/4" Shank Diam, 3-1/2" OAL, Indexable Square Shoulder Helical End Mill - HM390 TCKT 0703PCTR Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series HeliIQMill
Item #: 69397701
Brand: Iscar
Model #: 3106937
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.5000 |
| Lead Angle | 0 |
| Series | HeliIQMill |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETC-07 |
| Head Length (Decimal Inch) | 1.2500 |
| Weldon Flat | Yes |
| Insert Compatibility | HM390 TCKT 0703PCTR |
| Shank Length (Decimal Inch) | 2.2500 |
