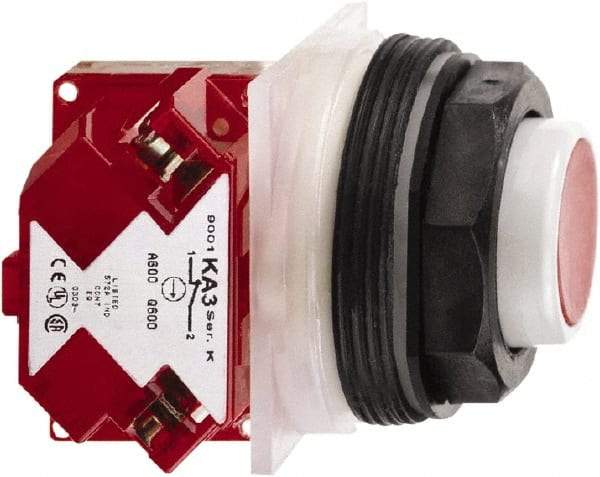

Schneider Electric - 30mm Mount Hole, Extended Straight, Pushbutton Switch with Contact Block - Octagon, Red Pushbutton, Momentary (MO)
Item #: 69653038
Brand: Schneider Electric
Model #: 9001SKR3RH6
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches with contact blocks are designed to activate machinery by button that is pressed and released. The contact block controls the flow of electricity through the switch.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 30 |
| Switch Type | Pushbutton Switches with Contact Blocks |
| Pushbutton Type | Extended (Straight) |
| Pushbutton Shape | Octagon |
| Pushbutton Color | Red |
| Operation Type | Momentary (MO) |
| Pushbutton Material | Plastic |
| Amperage | 10 |
| Voltage | 600 VAC |
| Contact Configuration | NC |
| NEMA Rating | 1; 2; 3; 4; 12; 13; 3R; 4X |
| Standards Met | CSA C22.2 No. 14; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; JIS C 4520; JIS C 852; UL 508 |
