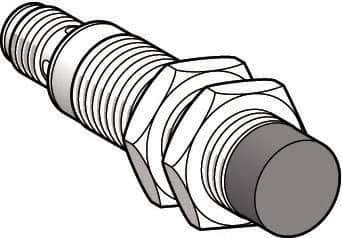

Telemecanique Sensors - NPN, PNP, 12mm Detection, Cylinder, Inductive Proximity Sensor - 2 Wires, IP67, IP69, 24 to 240 VAC/VDC, M18x1 Thread, 72mm Long
Item #: 69657005
Brand: Telemecanique Sensors
Model #: XS618B4MAU20
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO |
| Output Type | NPN; PNP |
| Connector Type | 3-pin Male 1/2 inch 20 UNF |
| Number of Wires | 2 |
| Detection Distance (mm) | 12.00 |
| Maximum Voltage | 24-240 VAC/VDC |
| Ingress Protection Rating | IP67; IP69 |
| Maximum Load Capacity (mA) | 5-200; 5-300 |
| Response Frequency (Hz) | 25; 1000 |
| Thread Size | M18x1 |
| Housing Material | Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 72 |
| Standards Met | CSA; DIN 40050; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL |
